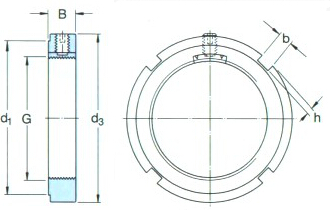

KMK Lock Nut With Innner Locking Pin

static

Lock nut

d₃

B

G

mm

mm

kN

10

20

9

M 10x0.75

9.8

KMK 0

12

22

9

M 12x1

11.8

KMK 1

15

25

9

M 15x1

14.6

KMK 2

17

28

9

M 17x1

19.6

KMK 3

20

32

9

M 20x1

24

KMK 4

25

38

9

M 25x1.5

31.5

KMK 5

30

45

9

M 30x1.5

36.5

KMK 6

35

52

9

M 35x1.5

50

KMK 7

40

58

11

M 40x1.5

62

KMK 8

45

65

11

M 45x1.5

78

KMK 9

50

70

15

M 50x1.5

91.5

KMK 10

55

75

15

M 55x2

91.5

KMK 11

60

80

15

M 60x2

95

KMK 12

65

85

14

M 65x2

108

KMK 13

70

92

14

M 70x2

118

KMK 14

75

98

14

M 75x2

134

KMK 15

80

105

18

M 80x2

173

KMK 16

85

110

18

M 85x2

190

KMK 17

90

120

18

M 90x2

216

KMK 18

95

125

20

M 95x2

236

KMK 19

100

130

20

M 100x2

255

KMK 20
