SBG...FLL SBG..SLL SBS..SLL

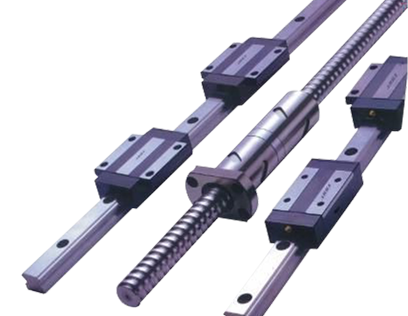

Linear guideways provides linear motion by re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 1/50 compared to a traditional slide and they are able to take loads in all directions.

SBG...FLL SBG..SLL SBS..SLL.pdf

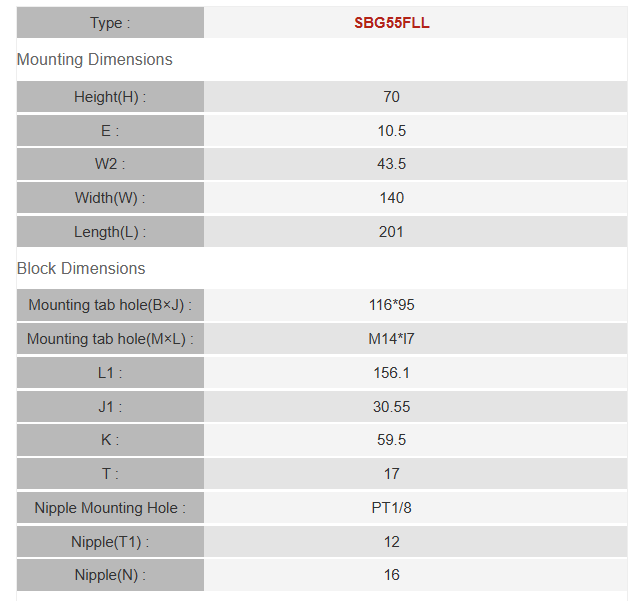

• Type :
  SBG55FLL
• Mounting Dimensions
• Height(H) :
  70
• E :
  10.5
• W2 :
  43.5
• Width(W) :
  140
• Length(L) :
  201
• Block Dimensions
• Mounting tab hole(B×J) :
  116*95
• Mounting tab hole(M×L) :
  M14*l7
• L1 :
  156.1
• J1 :
  30.55
• K :
  59.5
• T :
  17
• Nipple Mounting Hole :
  PT1/8
• Nipple(T1) :
  12
• Nipple(N) :
  16
• Rail Size
• Width(W1) :
  53
• Height(H1) :
  45
• Pitch(F) :
  120
• Bolt Hole(d×D×h) :
  16*23*20
• G :
  30
• Max.length Of rail Lomax :
  4480
• Load capacity
• Dynamic C(kgf) :
  12100
• Sationary Co(kgf) :
  18660
• Stationary moment(kgf.M) MRO :
  449
• Stationary moment(kgf.M) MPO :
  435
• Stationary moment(kgf.M) MRO :
  426
• Weight
• bearing (kgf) :
  6.3
• rail (kgf/M) :
  14.9
